Researchers at the US National Institute of Standards and Technology and the Joint Quantum Institute have demonstrated a chip-scale frequency comb designed to make precise optical measurements without bulky laboratory equipment.
The device could help move ultraprecise optical timekeeping into portable systems, with possible uses in navigation when GPS is unavailable or jammed, as well as scientific surveying and resource exploration.
What is a frequency comb?
A frequency comb produces many precisely spaced colours of light. On a spectrum, those colours resemble the evenly spaced teeth of a comb. Researchers can use them like marks on a ruler to measure optical frequencies with exceptional accuracy.
Frequency combs are important in optical atomic clocks because they connect extremely high-frequency atomic signals with electronic systems that can count and use them. They also support spectroscopy, communications and calibration.
What has NIST changed?
The new approach sends light from two lasers around a tiny ring-shaped microresonator. Interactions inside the ring generate a stable set of evenly spaced optical frequencies.
Earlier single-laser chip designs could require additional power-hungry equipment to maintain a high-quality comb. Reducing that supporting hardware is a major step toward a system that can operate outside a specialist laboratory.
Why do portable optical clocks matter?
Precise timing allows a system to calculate position, synchronise communications and compare measurements across distance. GPS satellites provide timing to much of the modern economy, but their weak signals can be blocked, disrupted or spoofed.
A vehicle carrying a stable local clock could continue navigating for longer when satellite signals disappear. Potential applications include aircraft, ships, submarines and autonomous systems, although a microcomb is only one component of a complete navigation system.
Could the technology be manufactured at scale?
NIST’s images show wafers containing hundreds of chips, with each chip able to house many tiny resonators. Fabrication in a wafer process offers a route to repeatable production and lower unit costs if performance remains consistent.
Scaling is not automatic. Packaging, laser integration, thermal stability, power consumption and long-term reliability will all determine whether laboratory results translate into field equipment.
What should researchers demonstrate next?
The clearest evidence would be operation in a compact, complete optical clock under vibration, temperature changes and limited power. Comparisons against established laboratory systems would show how much accuracy is retained.
Researchers will also need to test manufacturing variation. A design that works on one chip is scientifically valuable; a design that works predictably across many wafers can become infrastructure.
Reporting basis
This article is based on NIST’s 16 October 2026 research summary. Ferdiox uses “tape measure for light” as an explanatory analogy and does not claim that the device alone replaces GPS.

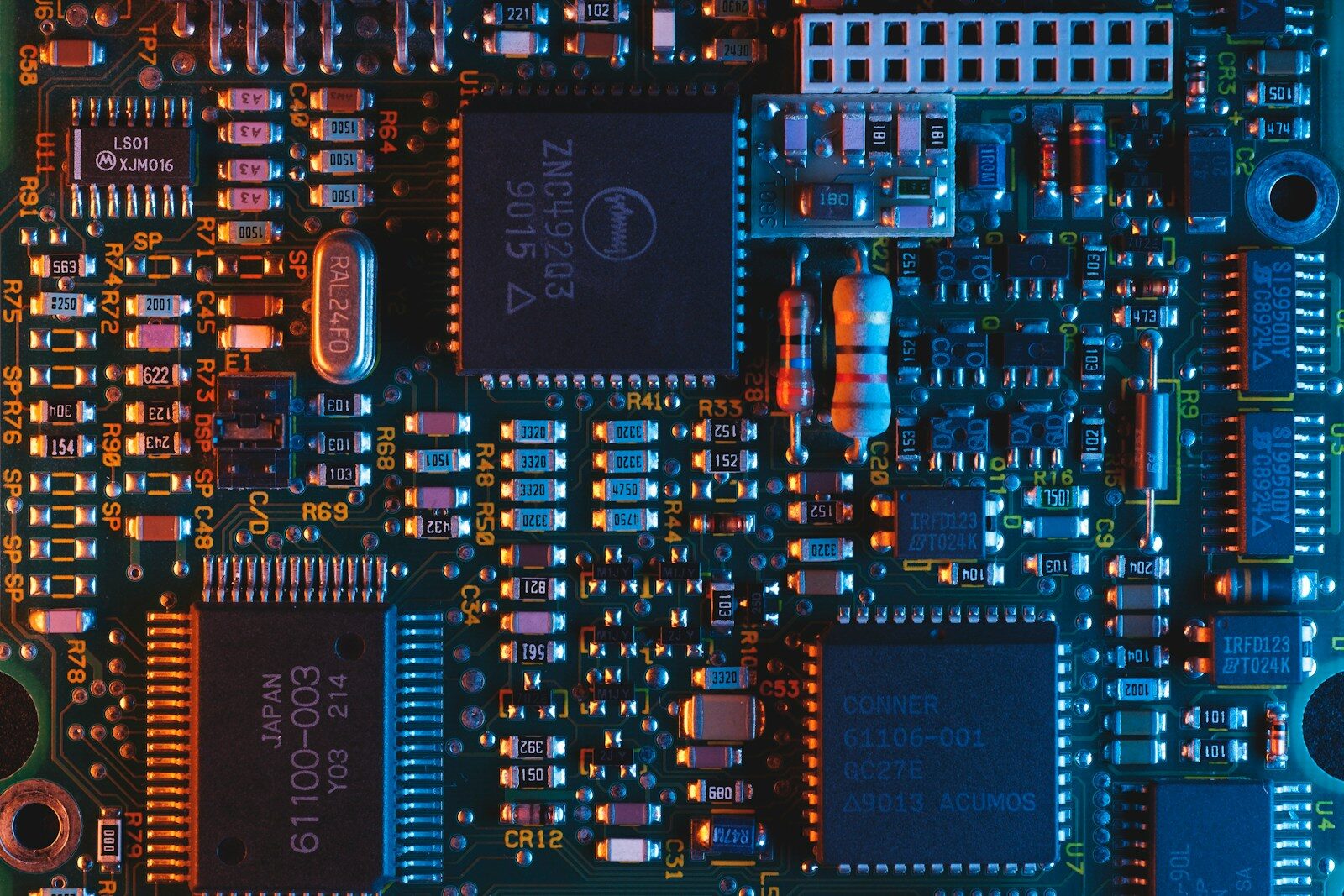

Featured image: Umberto via Unsplash.
